Mechanical Anchor Point Base / Starter Kit Pre-Order

The Pre-order will get you on the email list for the release as well as a $50 coupon valid on the whole JSpec store, and you will be the first to know when the Mechanical Anchor Point goes on sale (24-48hours before we let the world know)

We trust our product so much that all of the Anchor Point Bodies are machined on an Anchor Point System.

• Planned release date is 14 Feb 2026
• Planned Pricing:
  • Starter kit $400
  • Just the base $360
  • Shipping and Duties to the USA $200

The idea behind the Anchor Point is for a cost-effective base system with an ultra-low cost per pallet.

The Mechanical Anchor Point base is a mechanical quick-release system for quick changing pallets in a CNC machine, allowing for shorter stops between cycles and easy changeovers.

Shipping Times

• Planned shipping Date 14 Feb 2026
• Shipping takes on average 5-10 working days.
• The shipping cost on each unit is $70

What kind of work is the anchor point suited to?

• Small parts
• Second operations
• Parts that can be bolted in from the back
• Machining new pallets for the Anchor Point

What's in the box?

• The anchor point base unit
• 2 blank pallets (Including Hardware)
• Toe Clamps for t slot/SMW plate

Mounting options -

• Toe clamps for M12 T-slot and also for 1/2 inch bolts to suit SMW fixture plates
• 8mm through holes for bolting to the upcoming mooring point and harbor bases (or your own bases)
• 96mm Lang/RockLock mounting holes for use as a cost-effective pallet system on your expensive quick-change system

Expandability -

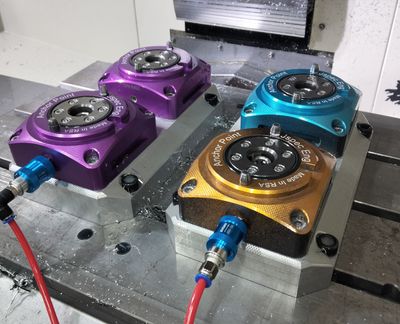

The Mechanical Anchor Point is the base of our modular work-holding system, which is currently in development. The first of these is the mooring point. This base allows two anchor points to be mounted to a single base with a set distance between them, allowing the spanning of units to increase rigidity and making it possible to hold larger pallets. The harbour is also in development and will have 4 anchor point units, allowing much larger pallets to be held. We are working on a mechanical version of both the Mooring Point and the Harbour, and both will be entering the testing phase soon.

Blank pallets -

We are offering blank pallets with the required hardware and features machined in for just $28 per pallet (+ shipping). These pallets are 102 x 102 x 29mm or 4 inch x 4 inch x 1.15 inch

We also offer pull studs for using 20mm or ¾ inch plates to make pallets.

The system uses standard BT30 45° pull studs available from many suppliers. The locating holes are machined directly into the aluminum pallet. If the pallet is intended to be used in a high-production environment, drill bushes can be inserted to prevent wear.
